This additive is effective below a temperature of 120 degrees Celsius (248 degrees Fahrenheit).
It has a remarkable thickening effect and high viscosity at low concentrations. It effectively suspends weighing agents, insoluble solids, and oil droplets.
It exhibits good synergy with other thickening agents.
It has a strong thickening effect, suspension ability, and stability. It is easy to dissolve and apply in water.
Before use, it is important to conduct a compatibility test.
It has a thickening effect on cement slurry under certain conditions, so it is necessary to apply an appropriate amount of chemical inert spacing agents to separate it from the cement slurry. Fresh water or mixing water can be used as a chemical inert spacing agent.
The professional solution for clean wellbore displacement and slurry integrity.
Product Overview

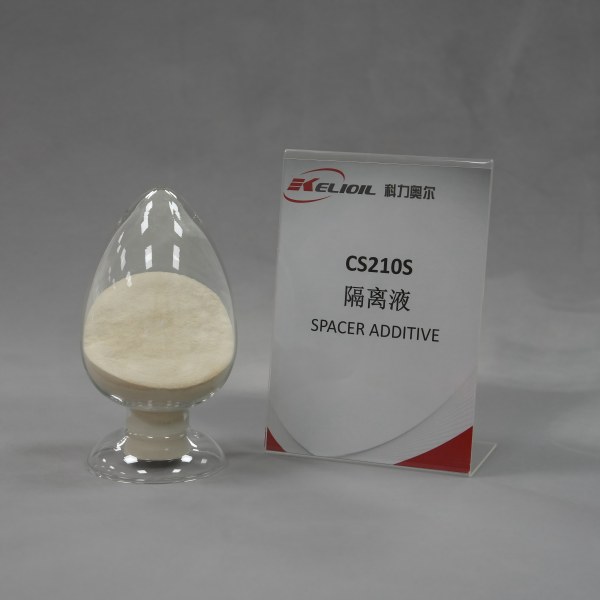

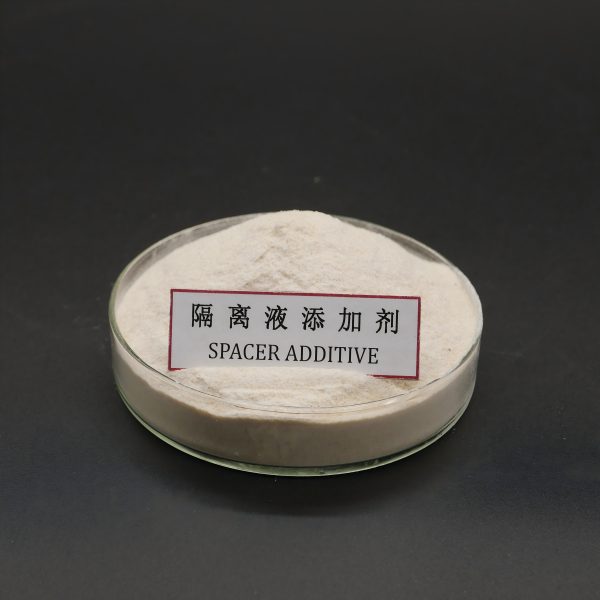

CS210S is a premium powder-based spacer additive designed to effectively remove drilling fluids and create a clean interface for cement slurry. By providing a high-viscosity barrier, it prevents the detrimental blending of mud and cement, ensuring a high-quality bond and long-term well integrity.
Performance Highlights
Superior Cleaning: Effectively flushes drilling mud from the annulus to prevent contamination.
High Yield at Low Dosage: Achieve a viscosity of ≥5000 mPa·s with a recommended dosage of only 2.0% (BWOW).
Thermal Stability: Maintains performance in temperatures up to 120℃ (248℉ BHCT).
Advanced Suspension: Exceptional ability to keep weighing agents, insoluble solids, and oil droplets in suspension.
Synergistic Compatibility: Can be seamlessly integrated with other thickening agents for customized fluid designs.
PHYSICAL AND CHEMICAL INDICATORS
|
CS210S |
|
Appearance：Faint yellow powder |
|
Density, g/cm3: 1.10±0.10 |
|
Water-Solubility: Soluble |
CEMENT SLURRY PERFORMANCE
|
Item |
Test Condition |
Technical Indicator |
|
Marsh funnel viscosity, s |
Marsh Funnel |
≥200 |
|
Viscosity, mPa·s |
Viscometer |
≥5000 |
|
Spacer agent prescription
|
Fresh water 1600g + Spacer agent CS210S generally dosed at 0.5-4.0% (BWOW), recommended dosing 2.0% (BWOW). |
|
PACKING AND STORAGE
Used within 24 months after production.
Once expired, it shall be tested before use.

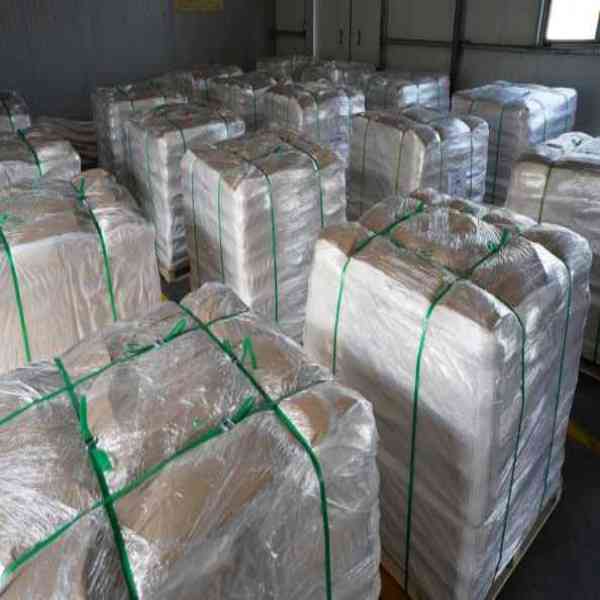

Packed in 25kg bag.
Customized packages are also available.
Difference between CS210L (Liquid) and CS210S (Powder):
CS210L: Higher temperature rating (150℃), liquid form for easy direct mixing.
CS210S: Cost-effective powder form (120℃), requires 2.0% BWOW dosing, easier for long-term storage and 25kg bag transport.
Established in 2006, Tianjin Kelioil Engineering Material and Technology Co., Ltd. is a high-tech enterprise specializing in the independent R&D and large-scale production of oilfield cementing additives.
