Used for cement curing and testing of cement consistency properties of oil well cement under atmospheric pressure.
Instrument used for cement curing and testing of cement consistency properties of oil well cement under atmospheric pressure, in strict accordance with API Standard Specification 10.
|
NCCQ2220 |
Mixing Speed |
Cup Volume |
Input Voltage |
Heating Power |
Size（W*D*H) |
Consistency Range |
|
150±15rpm |
470ml |
220V 50Hz |
2400W |
54*65*65cm |
0-100Bc |
|
|
Weight |
Input Power |
Max. Temperature |
Cooling Water Pressure |
Cooling Water Connector |
Max. Working Pressure |
|
|
65Kg |
2700W |
93℃ |
0.2-0.5MPa |
Hose fitting 1/4” |
Atmospheric Pressure |

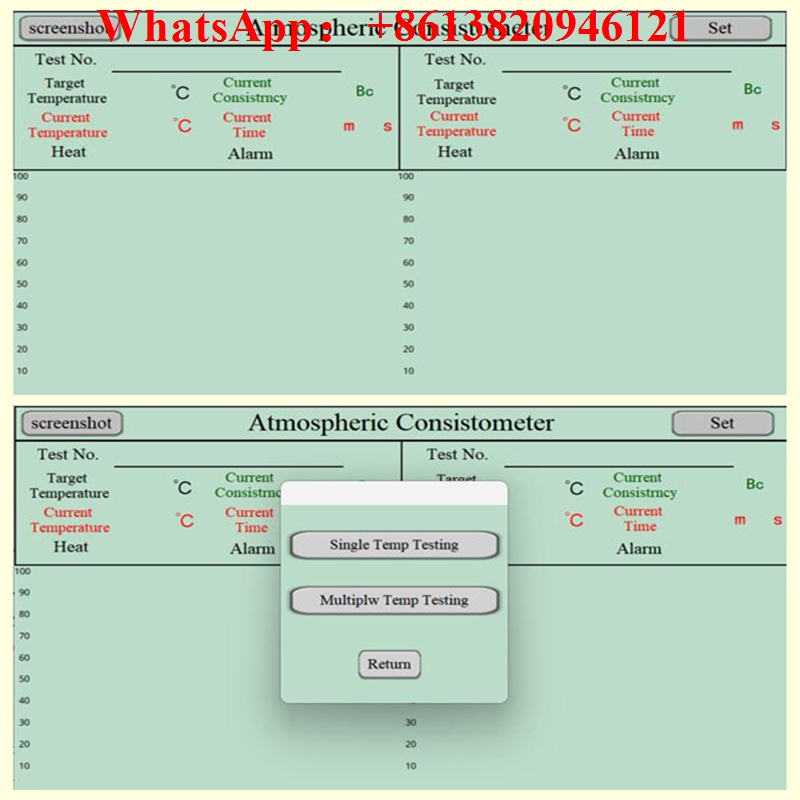

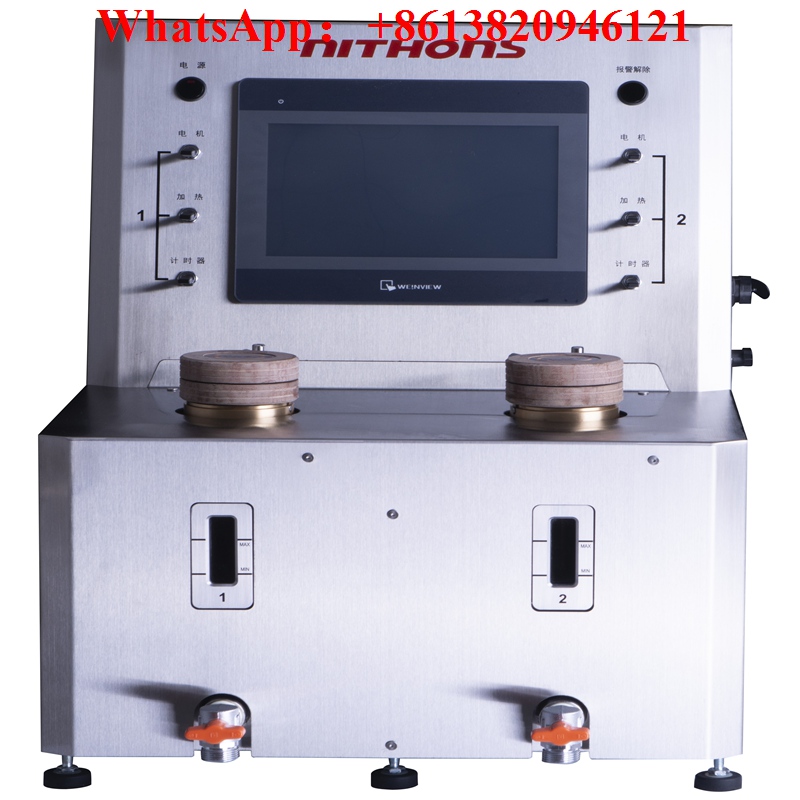

The instrument adopts PLC and touch screen design, making the experimental data clear at a glance, and its intelligent control function is more convenient.
The instrument uses transducers instead of traditional potentiometers to measure consistency, eliminating tedious wiring work, improving experimental accuracy, and facilitating calibration.

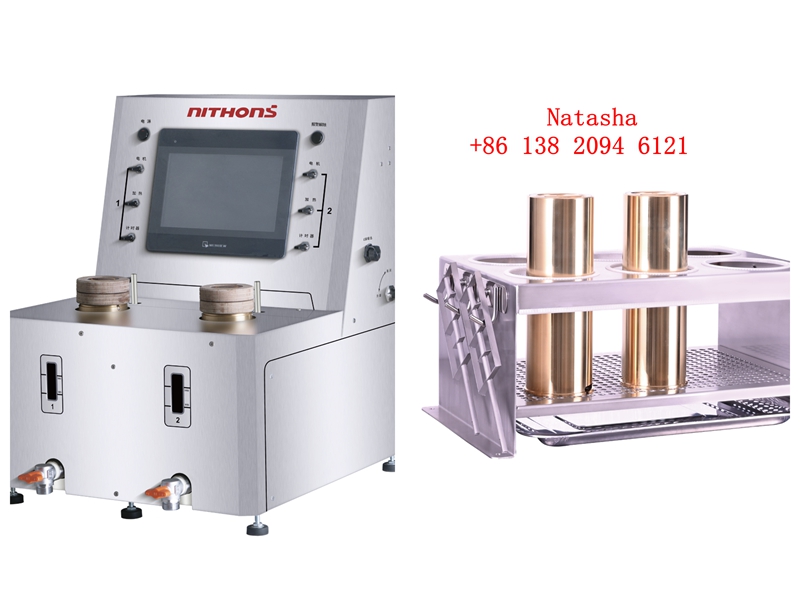

The instrument adopts a dual-cylinder and dual-temperature control design, which can conduct double experiments at two different temperatures simultaneously, which is convenient and effective.
The instrument adopts easily detachable water reservoirs, which simplifies the disassembly steps, saves time and facilitates cleaning and maintenance.
The instrument has alarm function (with multiple alarm parameters such as temperature, time, consistency, etc., and the alarm nodes can be modified) and cooling function (in addition to cooling the medium in the water reservoir, the cooling function can also be achieved by connecting the cooling inlet/outlet to an external refrigeration device to perform cement slurry curing below room temperature).
