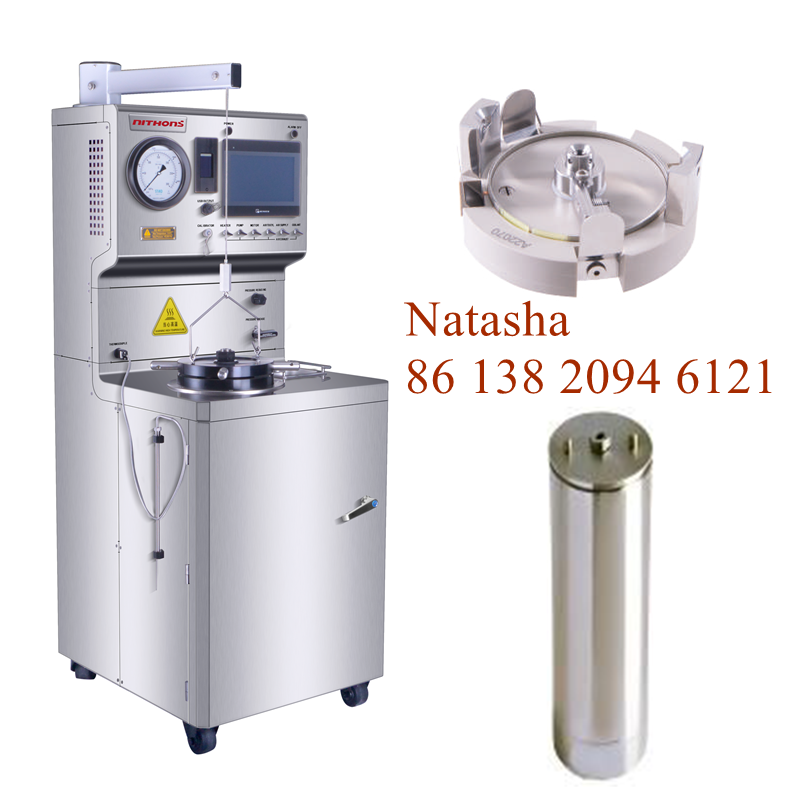

Fully automatic instrument used to simulate the high temperature and high pressure environment underground and continuously measure the consistency change and thickening time of oil well cement.
Fully automatic instrument used to simulate the high temperature and high pressure environment underground and continuously measure the consistency change and thickening time of oil well cement.

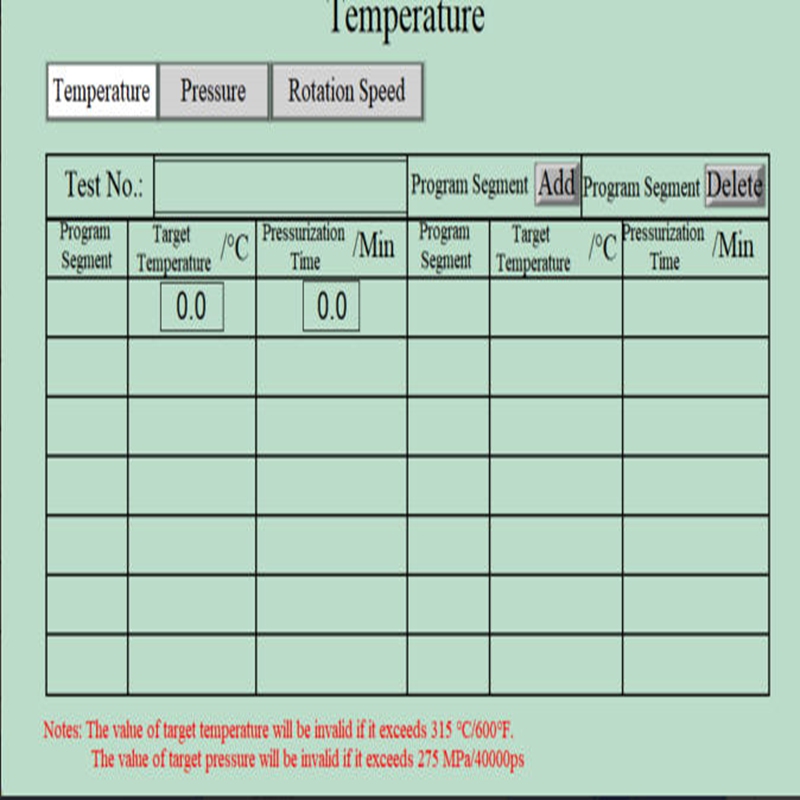

This instrument adopts a touch screen design, and experimental parameters can be set on it without frequent operations.

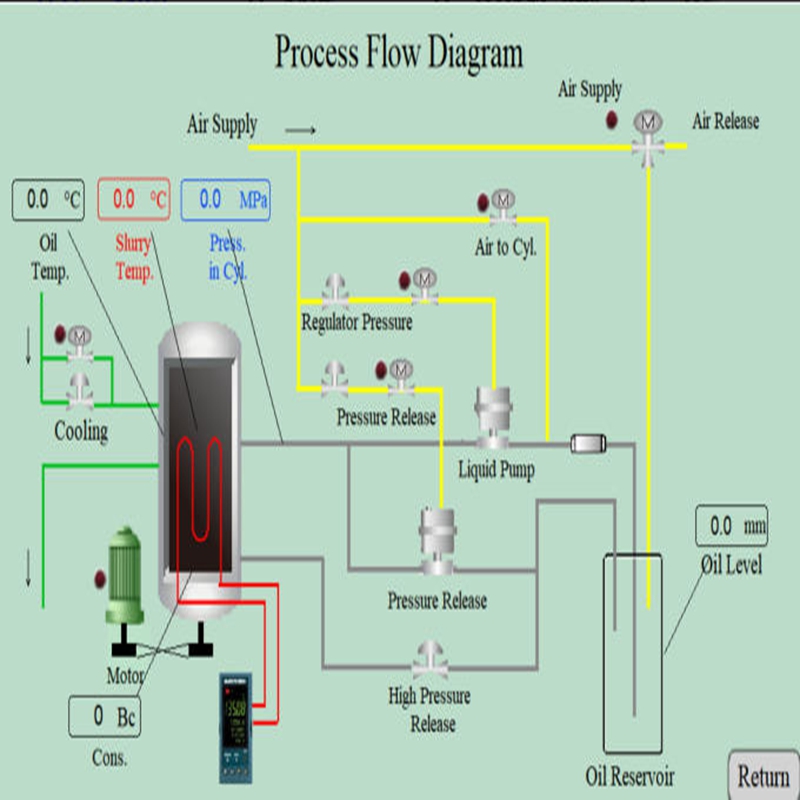

The experimental data and experimental curves can be observed through the touch screen, and the data can be saved and output through screenshots.
The experimental data can be seen at a glance and be set, observed and saved through computer software.
|
|
NZCQ2120R |
NZCQ2220R |
|
Max. Temperature |
315℃ |
315℃ |
|
Max. Working Pressure |
275MPa（40000psi) |
275MPa（40000psi) |
|
Input Voltage |
220V 50Hz |
220V 50Hz |
|
Input Power |
4500W |
9000W |
|
Consistency Range |
0-100Bc |
0-100Bc |
|
Rotating Speed of Mixing |
0-300rpm |
0-300rpm |
|
Air Source Pressure |
0.4-0.7MPa |
0.4-0.7MPa |
|
Cooling Water Pressure |
0.2-0.5MPa |
0.2-0.5MPa |
|
Size（W*D*H) |
64*80*177cm |
127*80*177cm |
|
Weight |
500Kg |
950Kg |
|
Heating Power |
4000W |
4000W*2 |
|
Cooling Water Connector |
Hose ID 10mm |
Hose ID 10mm |
