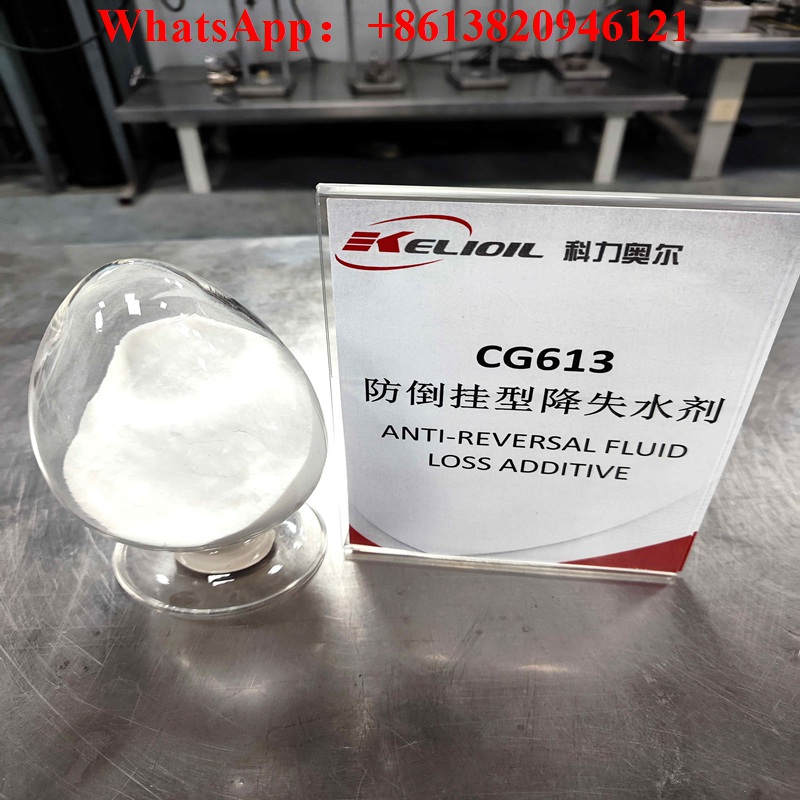

CG613 is a synthetic polymer designed to reduce water loss from cement slurry into porous formations during the cementing process.
It maintains excellent fluid loss control while addressing common issues with polymer-based additives, such as reversed thickening times and reduced strength.
CG613 is primarily used in normal density cement slurry system.
It’s suitable for fresh water systems.
It operates effectively at temperatures below 180°C (356°F, BHCT).
Compatible with other additives.
The recommended dosage ranges from 0.6% to 2.5% of the total slurry weight (BWOC).
SUMMARY
CG613 is a synthetic polymer designed to reduce water loss from cement slurry into porous formations during the cementing process.
It maintains excellent fluid loss control while addressing common issues with polymer-based additives, such as reversed thickening times and reduced strength.
CG613 is primarily used in normal density cement slurry system.
It’s suitable for fresh water systems.
It operates effectively at temperatures below 180°C (356°F, BHCT).
Compatible with other additives.
The recommended dosage ranges from 0.6% to 2.5% of the total slurry weight (BWOC).
Physical and chemical indicators
|
CG613S |
|

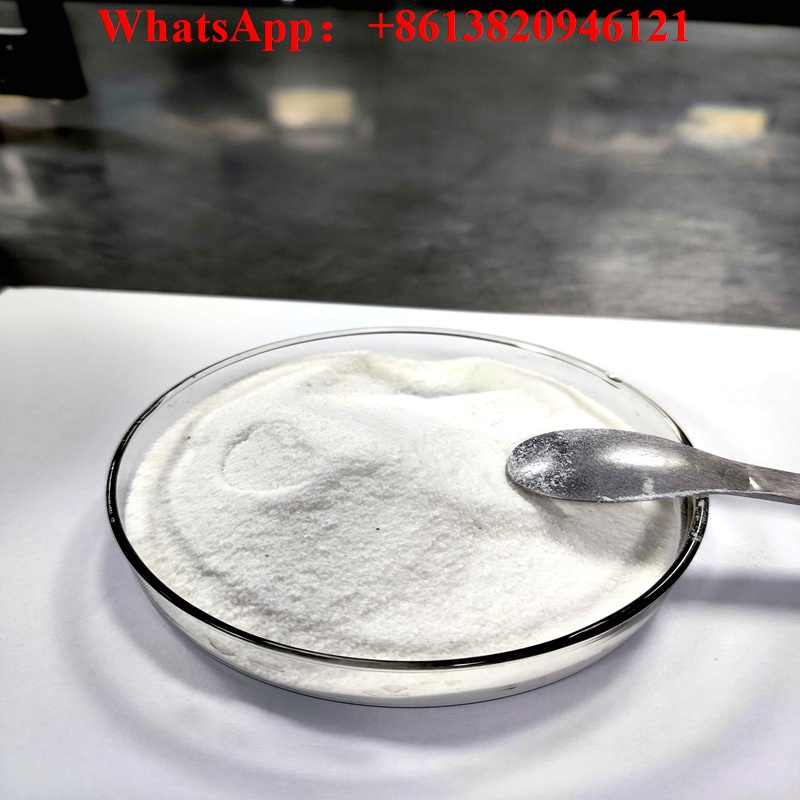

Appearance：White or faint yellow powder |
|
Bulk Density, g/cm3: 0.80±0.20 |
|
Water-Solubility: Soluble |
Cement slurry performance
|
Item |
Test Condition |
Technical Indicator |
|
|
Density of the cement slurry, g/cm3 |
25℃, Atmospheric Pressure |
1.90±0.01 |
|
|
Fluid loss, ml |
Fresh water system |
80℃, 6.9MPa |
≤50 |
|
Thickening performance |
Initial consistency, Bc |
80℃/45min, 46.5MPa |
≤30 |
|
40-100 Bc thickening time, min |
≤40 |
||
|
Free fluid, % |
80℃, Atmospheric Pressure |
≤1.4 |
|
|
24h compressive strength, MPa |
≥14 |
||
Package and Storage
The powdered products should be consumed within 24 months of their manufacture.
They are packaged in 25-kilogram bags. We also offer custom packaging options.
Before using the product, it must be tested to ensure its quality.
