It is specially designed for lightweight and normal density cement slurry system with high dispersity.
Enhance the stability of the suspension, maintains the liquidity of the cement slurry, and prevents sedimentation.
The thickening time decreases with increasing temperature, and the compressive strength of the set cement develops rapidly.
Help control gas migration during the setting of the cement slurry.
It is suitalbe for use in fresh water, seawater, and slurry containing 2% CaCl2.
It is recommended for use below temperature of 180℃(356℉, BHCT).
Compatible with other additives.
Summary
The fluid loss additive is a synthetic polymer that effectively reduces water loss from the slurry to the porous formation during the cementing process.
It is specially designed for lightweight and normal density cement slurry system with high dispersity.
Enhance the stability of the suspension, maintains the liquidity of the cement slurry, and prevents sedimentation.
The thickening time decreases with increasing temperature, and the compressive strength of the set cement develops rapidly.
Help control gas migration during the setting of the cement slurry.
It is suitalbe for use in fresh water, seawater, and slurry containing 2% CaCl2.
It is recommended for use below temperature of 180℃(356℉, BHCT).
Compatible with other additives.
The recommended dosage is 0.6-2.5% (BWOC).
Physical and chemical indicators
|
CG214S-P |
|

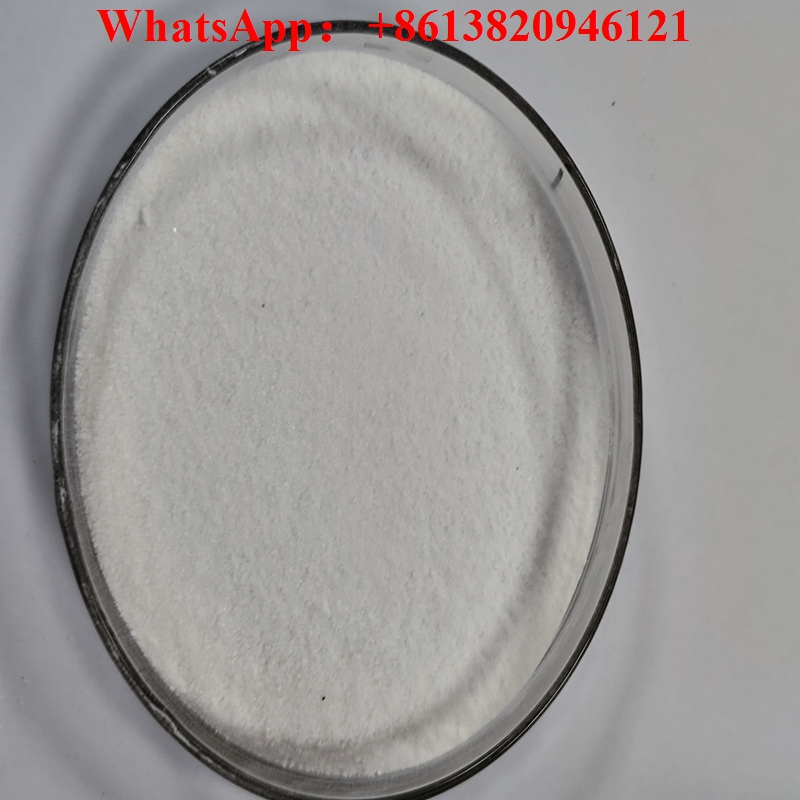

Appearance：White or faint yellow powder |
|
Bulk Density, g/cm3: 0.80±0.20 |
|
Water-Solubility: Soluble |
Cement slurry performance
|
Item |
Test Condition |
Technical Indicator |
||
|
Density of the lightweight cement slurry, g/cm3 |
25℃, Atmospheric Pressure |
1.35±0.01 |
||
|
Density of Dyckerhoff cement slurry with strong dispersity, g/cm3 |
1.90±0.01 |
|||
|
Fluid loss, ml |
Fresh water system |
52℃，6.9MPa |
≤60 |
|
|
Seawater system |
80℃，6.9MPa |
≤100 |
||
|
Slurry containing 2% CaCl2 |
≤80 |
|||
|
Thickening performance |
Initial consistency, Bc |
52℃/28min,35.9MPa |
≤30 |
|
|
40-100 Bc thickening time, min |
≤40 |
|||
|
Free fluid, % |
80℃, Atmospheric Pressure |
≤1.4 |
||
|
24h compressive strength, MPa |
Lightweight cement slurry |
≥5.0 |
||
|
Cement slurry with strong dispersity |
≥14.0 |
|||
Package and storage
The product should be used within two years of production date.
Packaged in25kg bag.
Once expired, it shall be tested before use.
Custom packaging is also available.
